Product Details:
|
| Input Voltage: | Single-phase 215V±10% | Input Currency: | 50A |
|---|---|---|---|
| Supply Frequency: | 50/60 Hz | Output Voltage: | Single-phase 215V±10% |
| Output Power: | 10KW | Output Currency: | 50A |
| Size: | 250*150*400（Height*Width*Depth） | Charging Gun: | 1 Gun（J1772） |
| Cable Length: | 5m | ||
| High Light: | Single Phase AC EV Charger,AC EV Charger 10KW,CCS1 Single Phase EV Charger |
||

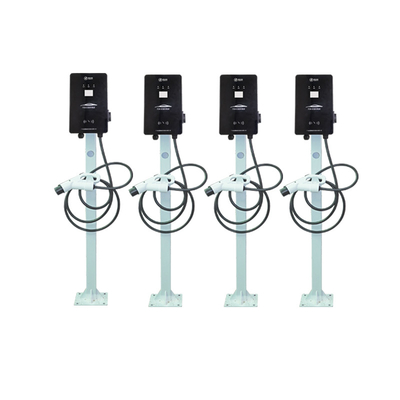

Single-Phase 10KW CCS1 Wall-Mounted Lever 2 America Standard AC EV Charger
Specifications:
| Product Type | 10KW AC Charger (Ameriacan Standard Version) |
| Product Model | RSAC220-10KW |
| Dimension (H*W*D)(mm) |
250*150*400
|
| Height (mm) | 1466mm high after mounted on the post |
| Display Mode | LED Display |
| Input Voltage | 220VAC, 1 phase + N+PE |
| Output Power (KW) | 10 |
| Input Frequency (HZ) | 45~55Hz |
| Max. Output Current (A) | 50 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 50 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing hanger |
| Product Introduction | 1. 10KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2. Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3. Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
Factory Show
R&D and production
Produce Department
Using Applications
