Product Details:
|
| Version: | Household | Dimension (H*W*D)(mm: | 220*110*355 |
|---|---|---|---|
| Cable Length: | 5m | Installation Method: | Floor Stand |
| Box Materia: | Sheet Metal | Input Frequency: | 45~55Hz |
| Precision: | Level 1 | ||
| High Light: | 32A Household Electric Car Charger,7KW Household Electric Car Charger,Type2 household car charger |
||

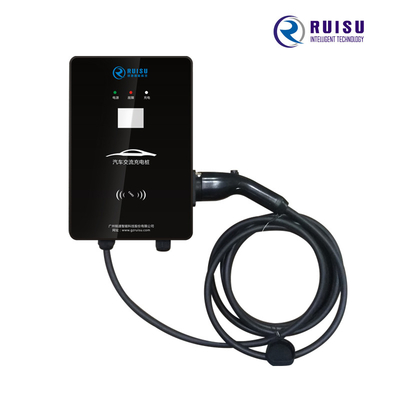

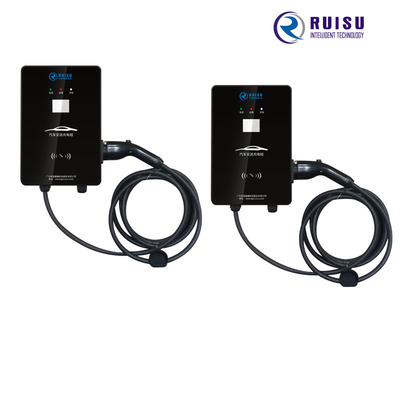

AC 7KW 32A Single Phase Type2 EV Charger Wall Box Household Version Charging Station
Advantages:
1.Sheet metal box,with a protection level of outdoor IP54;
2.Accurate measurement,time-of-use billing; start by swiping card scanning code, support WeChat/Alipay payment;
3.Have protection function against lightning,overload,short-circuit,over-temperature,current leakage,emergency stop,etc
4.Easy to install (wall/post-mounted)and maintain;
5.Charging options: settings forcharging time,SOClevel,fee and appointment;
6.It can be connected to 380V three-phase power supply,and the power can reach 11KW;
7.Have a variety ofversions to meet different needs;
Technical Parameters:
| Product Type | 7KW AC Charger (Household Version) |
| Product Model | RSAC220-7KW |
| Dimension (H*W*D)(mm) | 220*110*355 |
| Height (mm) | 1466mm high after mounted on the post |
| Display Mode | LED Display |
| Input Voltage | 220VAC, 1 phase + N+PE |
| Output Power (KW) | 7 |
| Input Frequency (HZ) | 45~55Hz |
| Max. Output Current (A) | 32 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing hanger |
| Product Introduction | 1.7KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2. Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3. Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4. Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
