Product Details:
|
| Version: | Operation | Dimension (H*W*D)(mm): | 220*110*355 |
|---|---|---|---|
| Cable Length: | 5m | Input Frequency: | 45~55Hz |
| Installation Method: | Floor Stand | Box Materia: | Sheet Metal |
| High Light: | 14KW AC EV Charger,Floor Stand AC EV Charger,5m Cable ev charger single phase |
||

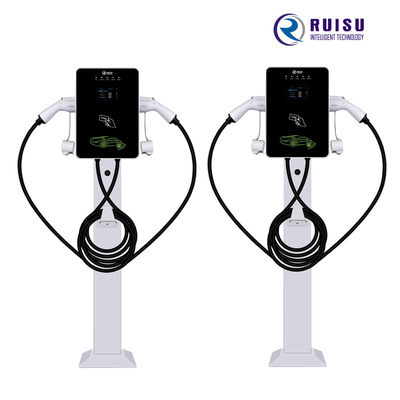

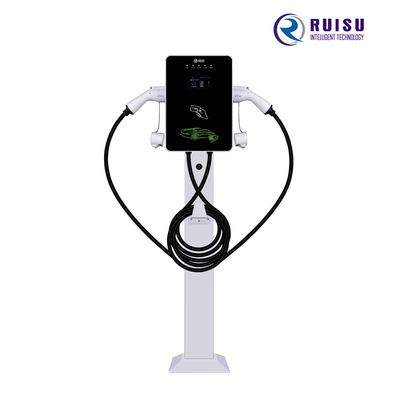

AC 14KW 32A Single Phase Type2 EV Charger Wall Box Operation Version Charging Station
Advantage:
1.4.3” LCD screen to present charging progress, fees to be charged and other information
2. Have high expandability and support 4G wireless communication;
3. Accurate measurement, time-of-usc billing; swiping card / scan code, support WcChat/Alipay payment;
4. High protection level: adopt sheet metal shell which is waterproof and dustproof, with a protection level of IP54, as well as protection against lightning, overload, short-circuit, over-temperature, current leakage, emergency stop, etc.;
5. Operation stably without noise;
6. Easy to install (wall/post-mounted) and maintain;
7. Support cloud management, and provide convenient and considerate operation management solutions for business users;
8. Charging options: settings for charging time, SOC level, fee and appointment;
9. Compatible with mainstream charging management platforms;
Technical Parameters:
| Product Type | 14KW AC Charger (Operation Version) |
| Product Model | RSAC220-14KW |
| Dimension (H*W*D)(mm) |
310*130*385mm |
| Height (mm) | 1470mm high after mounted on the post |
| Display Mode | LED Display |
| Input Voltage | 220VAC, 1 phase + N+PE |
| Output Power (KW) | 7 |
| Input Frequency (HZ) | 45~55Hz |
| Max. Output Current (A) | 32 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing hanger |
| Product Introduction | 1.14KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2. Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
