Product Details:
|
| Dimensions: | 1193*1100*2197mm (main Cabinet) | Output Voltage Range (V):: | 200-1000VDC |
|---|---|---|---|
| Max. Output Current (a): | 0-600A (Single Gun) | Metering Method: | DC Amperemeter Metering |
| Cooling Types: | Air Cooling+ Force Liquid | ||
| High Light: | OCPP EV Charger Stations,EV Charger Stations Liquid Cooling,Intelligent ocpp ev charger |
||

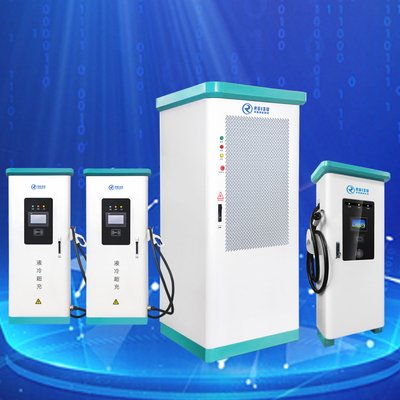

China Manufacturer OCPP Commercial Charging station Split DC Fast EV Charger for Car
Advantages:
1. Adopt intelligent liquid cooling technology and dual-circulation cooling circuit, allowing the coolant to directly reach the charger terminal and making the charging speed not decreased even the temperature is lower than 55 °C.
2. The coolant in the liquid cooling system is an organic synthetic liquid that does not freeze at minus 45°C; the cooling source module is equipped with monitoring and alarm devices for the working pressure, flow and temperature of the coolant.
3. Satisfy the needs of high-power and fast charging of electric vehicles, realize 100% SOC of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.
4. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.
Technical Parameters:
| Product Model |
RSDC1000-360KW-FYL main cabinet RSDC1000-480KW-FYL main cabinet |
| Dimensions | 1193*1100*2197mm (main cabinet) |
| (width x thickness x height) | 800*530*1822mm (sub-cabinet) |
| AC Input Voltage Range | 380V+15% |
| AC Input Frequency | 45~66Hz |
| Output voltage | 200-1000VDC (300-1000VDC constant power) |
| Maximum Output Current | 0-600A; efficiency: > 96% |
| Metering Method | DC amperemeter metering |
| Altitude Height | <2000m |
| Operating Temperature | -20°C~50°C |
| Communication Interface | 4G, RS485, CAN, Ethernet |
| Charger Length | 600A liquid cooling gun, with the length of 5m |
| Degree of Protection | Ip54 for plug and dust cap; IP55 for plug and socket box |
| Cooling Mode | Forced air cooling + liquid cooling; cooling fan power: 90W |
| Dimensions of Cooling Source Module | 550*200*600mm |
