Product Details:
|
| Dimensions (width Xthickness X Height): | 1193*1100*2197mm | Input Frequency (Hz):: | 45/66 Hz |
|---|---|---|---|
| Output Voltage Range (V):: | 300-1000VDC | Max. Output Current (a): | 0-600A (Single Gun) |
| Liquid-cooled Plugs: | 600A (Single Gun) | Cooling Types: | Air Cooling+ Force Liquid |
| High Light: | Air Cooling Car Charging Pile,480kw Car Charging Pile,Liquid Cooled Car Charging Pile |
||
1. Adopt intelligent liquid cooling technology and dual-circulation cooling circuit, allowing the coolant to directly reach the charger terminal and making the charging speed not decreased even the temperature is lower than 55 °C.
2. The coolant in the liquid cooling system is an organic synthetic liquid that does not freeze at minus 45°C; the cooling source module is equipped with monitoring and alarm devices for the working pressure, flow and temperature of the coolant.
3. Satisfy the needs of high-power and fast charging of electric vehicles, realize 100% SOC of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.
4. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.
5. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence, especially applicable to high-power charging of electric vehicles.
6. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle, thus increasing the utilization of the charging equipment and achieving highly integrated management.
7. Integrate power conversion, dynamic power distribution^ station-level monitoring, orderly charging management, access to new-energy power generation and energy storage systems, cooling control, and integrated wiring.

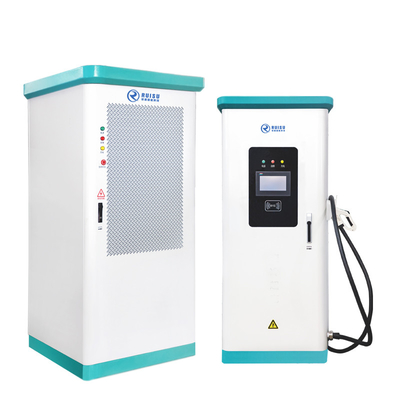

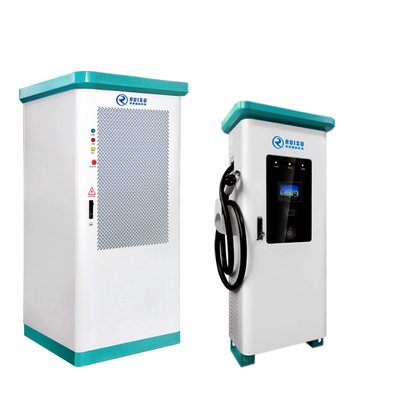

8. Adopt split structure (one-for-more); one main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.
Technical Parameters of Liquid cooled car charging pile split type 480kw DC air cooling
| Product Model |
RSDC1000-480KW-FYL main cabinet |
| Dimensions | 1193*1100*2197mm (main cabinet) |
| (width x thickness x height) | 800*530*1822mm (sub-cabinet) |
| AC Input Voltage Range | 380V+15% |
| AC Input Frequency | 45~66Hz |
| Output voltage | 200-1000VDC (300-1000VDC constant power) |
| Maximum Output Current | 0-600A; efficiency: > 96% |
| Metering Method | DC amperemeter metering |
| Altitude Height | <2000m |
| Operating Temperature | -20°C~50°C |
| Communication Interface | 4G, RS485, CAN, Ethernet |
| Charger Length | 600A liquid cooling gun, with the length of 5m |
| Degree of Protection | Ip54 for plug and dust cap; IP55 for plug and socket box |
| Cooling Mode | Forced air cooling + liquid cooling; cooling fan power: 90W |
| Dimensions of Cooling Source Module | 550*200*600mm |
