Product Details:
|
| Rated Output Power (Kw): | 20 | Output Voltage Range (V): | 200-750VDC |
|---|---|---|---|
| Max. Input Current (a): | 40 | Current Harmonics (Thdi): | +-5% |
| Efficiency: | >96% | ||
| High Light: | CE EV Charger Module,EV Charger Module 1000V |
||

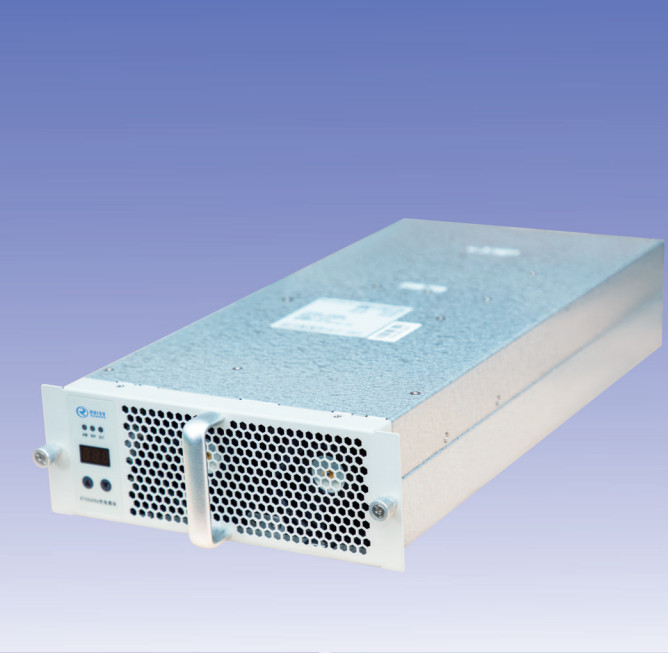

Electric Vehicle AC to DC EV Charger Power Module CE Approved
20KW 1000V Rectifier
| Product Model | RSDC750 60GW-SW |
| High temperature full load | Super-high Working Temperature 60ºC under Full Load |
| Wide Constant Power | 20KW Voltage Interval 200-750v |
| AC Input Voltage Range (V) | 280VAC - 485 VAC Three-phase Four-wire System (3W+PE) |
| Frequency Range (Hz) | 45~66Hz |
| Max. Input Current (A) | 40 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% |
| Power Factor | ≥0.99 |
| Output Voltage Range (V) | 200-750Vdc |
| Output Voltage Range under Constant Power (V) | 330-750Vdc |
| Rated Output Power (KW) | 20 |
| Max. Output Current (A) | 66.7A |
| Current Harmonic (THDI) | ≤5% |
| Output Protection | It's capable of returning prevention function, DC output over-voltage, output over-load protection function and warning and prompting function |
| Heat Dissipation | Fan forced refrigeration, designed with front and rear air duct |
| MTBF | ≥500000h |
| Power Density | 40W/in³ |
| Working Temperature (ºC) | -40~+75 (More than 55ºC deloading) |
