Product Details:
|
| Rated Output Power: | 40 KW | Output Voltage Range (V): | 200-1000VDC |
|---|---|---|---|
| Max. Input Current (a): | 80 | Current Range (a): | 0-133A Continuously Adjustable |
| AC Over-Voltage Value (V): | 490 | DC Over-Voltage Value (V): | 1025 (It Can Be Set As 200~1025) |
| Heat Dissipation: | Forced Air Cooling For 2500000h | Transport Package: | Standard Export Packaging |
| Specification: | Dimension (H*W*D) : 85*360*459mm | ||
| High Light: | OEM EV Charger Module,Fast Charging EV Charger Module,40kw ev charger power module |
||

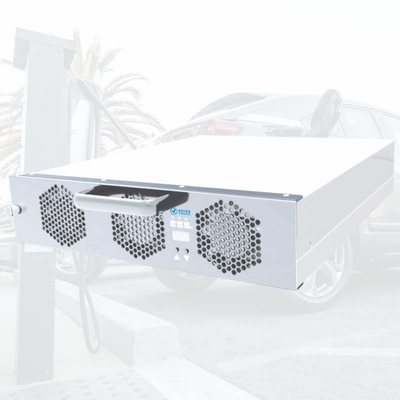

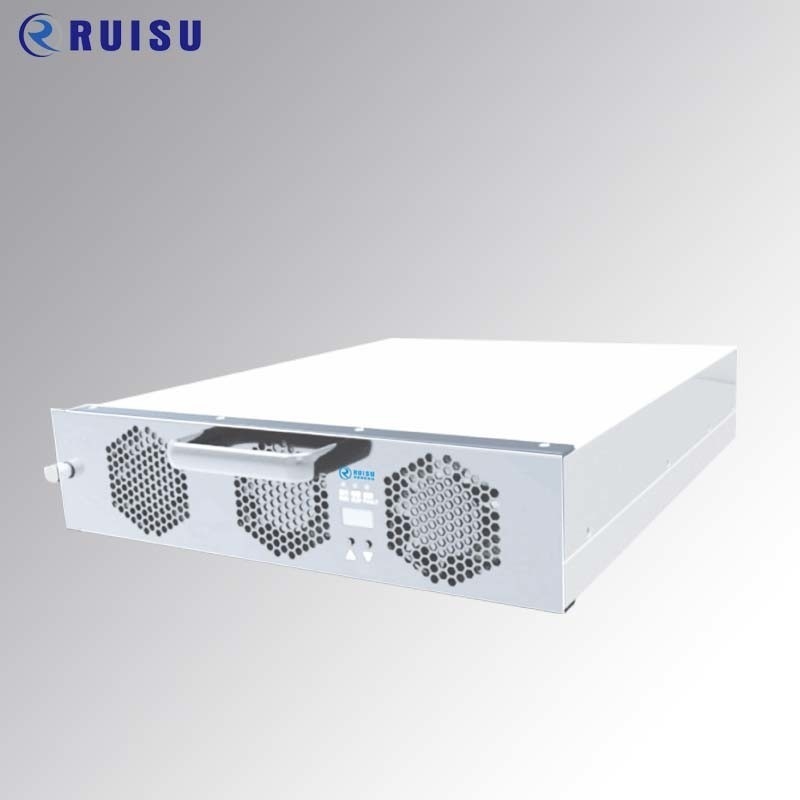

Ruisu 40kw Power Module Electric Vehicle Fast Charging EV Charger Power Module AC/DC EV Charger Component
40KW Ultra-wide Range Constant Power Module
| Product Model | RSDC1000 40GW-SW |
| Product Type | 40KW Super Constant Power Charging Module |
| AC Input Voltage Range (V) | 285Vac~475Va Three-phase Four-wire System (3W+PE) |
| Frequency Range (Hz) | 45Hz~65Hz |
| Max. Input Current (A) | 80 |
| Current Harmonic (THDI) | ≤5% |
| Efficiency | ≥95.5% (full load) |
| Power Factor | ≥0.98 (full load) |
| Output Voltage Range (V) | 200-1000Vdc |
| Output Voltage Range under Constant Power (V) | 300-1000Vdc |
| Rated Output Power (KW) | 40 |
| Current Range (A) | 0-133A Continuously Adjustable |
| Current Harmonic (THDI) | ≤5% |
| AC Over-voltage Value (V) | 490 V |
| AC Under-voltage Value (V) | 270 V |
| DC Over-voltage Value (V) | 1025 (it can be set as 200~1025) |
| Over-temperature Protection (°C) | 75 |
| Heat Dissipation | Forced air cooling for 2500000h |
| MTBF | ≥500000h |
| Standby power (W) | <12 |
| Working Temperature Range (°C) | -40~-+75 (More than 60ºC deloading) |
| Relative Humidity (%) | ≤95% |
| Size (H*W*D)(mm) | 85*360*459mm |
| EMC | GB/T 18487.2-2017 |
