Product Details:
|
| Input Voltage (V): | 380±15%, 3 Phases +N+PE | Input Frequency (Hz): | 45/66 Hz |
|---|---|---|---|
| Output Voltage Range (V): | 200-1000VDC | Max. Output Current (a): | 250A |
| Protection Grade: | Outdoor IP54 |

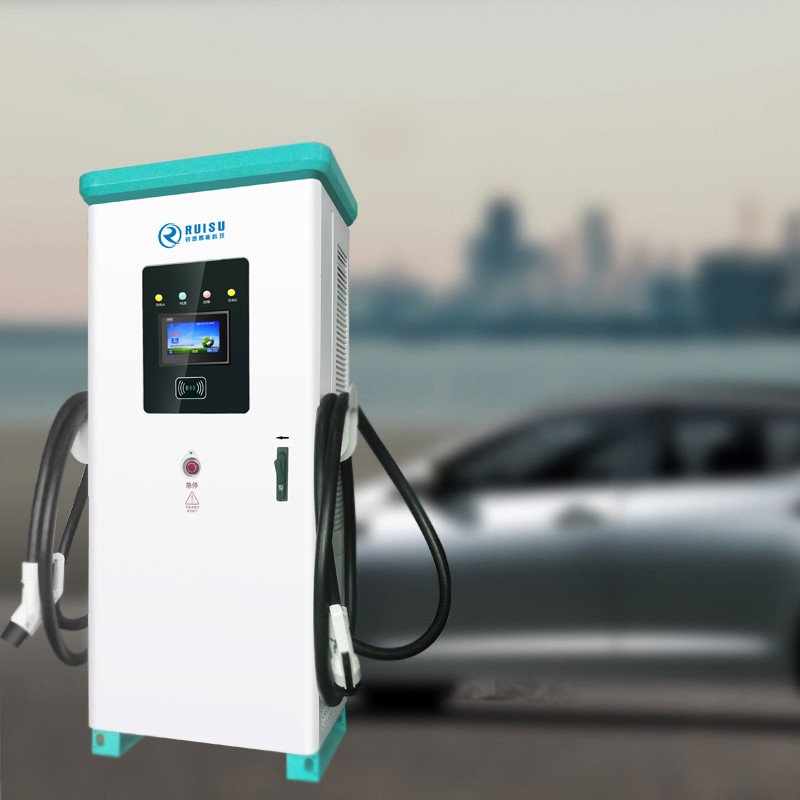

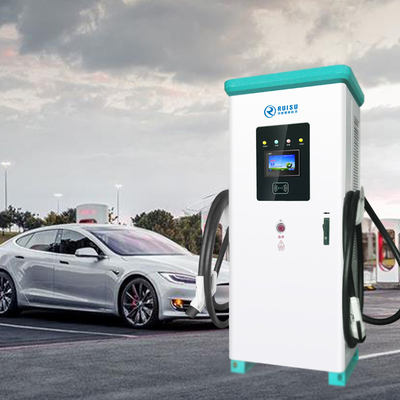

160kw Ev Charger Ce Certified Dc Ccs Chademo Chinese Supplier Commercial
Evse Charging Stations
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal.
2. Reduce energy consumption, improve the efficiency of the charging module, with more reasonable power distribution, more stable power switching, and finer granularity.
Technical Parameters:
| Product name | 160KW All-in-one DC Charger |
| Dimension (H*W*D)(mm) |
830*620*1867
|
| Display Mode |
7" Color Touch Screen
|
| Input Frequency (HZ) |
45~66Hz
|
| Protection Grade / Shell Material |
Outdoor IP54 / sheet metal shell
|
| AC Input Voltage Range (V) |
380±15%, 3 phases+N+PE
|
| Power Factor |
≥0.99
|
| Communication Interface |
4G
|
| Heat Dissipation Control |
Natural cooling
|
| Charging Operation |
Swiping card / scanning code
|
| Protection Function |
Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
|
| MOQ | Small order can be acceptable. |
| Delivery Time | According to order qty. |
| Packaging | Wooden box |
| Communication Protocol | ocpp1.6 |
| Charging Selection |
Automatic, timing, quantitation, fixed fee, appointment etc
|
| Running Indication |
Power supply, charging, fault
|
Factory Show
R&D and production
Produce Department
Using Applications
Contact Person: Michael
Tel: +8613059130502
