Product Details:
|
| Input Frequency (Hz):: | 45/66 Hz | Max. Output Current (a): | 0-600A (Single Gun) |
|---|---|---|---|
| Cooling Types: | Air Cooling+ Force Liquid | ||
| High Light: | 600kw Electric Car Charging Stations,Split Electric Car Charging Stations,OEM dc fast charging stations |
||

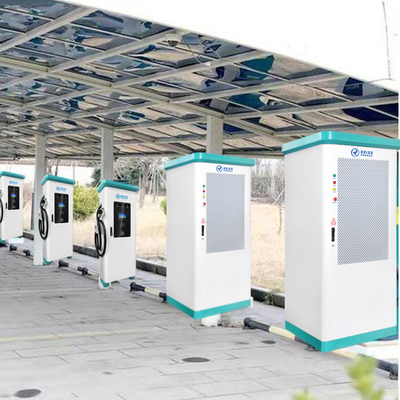

600kw DC EV Liquid-Cooled Charging Stations Split Type Electric Vehicle Charger
Advantages:
1. Adopt intelligent liquid cooling technology and dual-circulation cooling circuit, allowing the coolant to directly reach the charger terminal and making the charging speed not decreased even the temperature is lower than 55 °C.
2. The coolant in the liquid cooling system is an organic synthetic liquid that does not freeze at minus 45°C; the cooling source module is equipped with monitoring and alarm devices for the working pressure, flow and temperature of the coolant.
3. Satisfy the needs of high-power and fast charging of electric vehicles, realize 100% SOC of the vehicle within 10 minutes, and solve the customer's pain point of long charging time.
Technical Parameters:
| Product Model | RSDC1000-600KW-FYL main cabinet |
| Dimensions | 1193*1100*2197mm (main cabinet) |
| (width x thickness x height) | 800*530*1822mm (sub-cabinet) |
| AC Input Voltage Range | 380V+15% |
| AC Input Frequency | 45~66Hz |
| Output voltage | 200-1000VDC (300-1000VDC constant power) |
| Maximum Output Current | 0-600A; efficiency: > 96% |
| Metering Method | DC amperemeter metering |
| Altitude Height | <2000m |
| Operating Temperature | -20°C~50°C |
| Communication Interface | 4G, RS485, CAN, Ethernet |
| Charger Length | 600A liquid cooling gun, with the length of 5m |
| Degree of Protection | Ip54 for plug and dust cap; IP55 for plug and socket box |
| Cooling Mode | Forced air cooling + liquid cooling; cooling fan power: 90W |
| Dimensions of Cooling Source Module | 550*200*600mm |
Factory Show
R&D and production
Production and Quality
Produce Department
Projects Case
Using Applications
