Product Details:
|
| Liquid-cooled Plugs: | 600A (Single Gun) | Cooling Types: | Air Cooling+ Force Liquid |
|---|---|---|---|
| Charger Length: | 600A Liquid Cooling Gun, With The Length Of 5m | ||
| High Light: | 480KW 3 Phase Ev Charger,45Hz 3 Phase Ev Charger,3Phase Electric Vehicle Charging Station |
||
Good Price Charging Station For Electric Car DC 480KW Fast Chademo 3 Phase High Quality EV Charger
Advantages:
1. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence, especially applicable to high-power charging of electric vehicles.
2. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle, thus increasing the utilization of the charging equipment and achieving highly integrated management.
3. Integrate power conversion, dynamic power distribution^ station-level monitoring, orderly charging management, access to new-energy power generation and energy storage systems, cooling control, and integrated wiring.

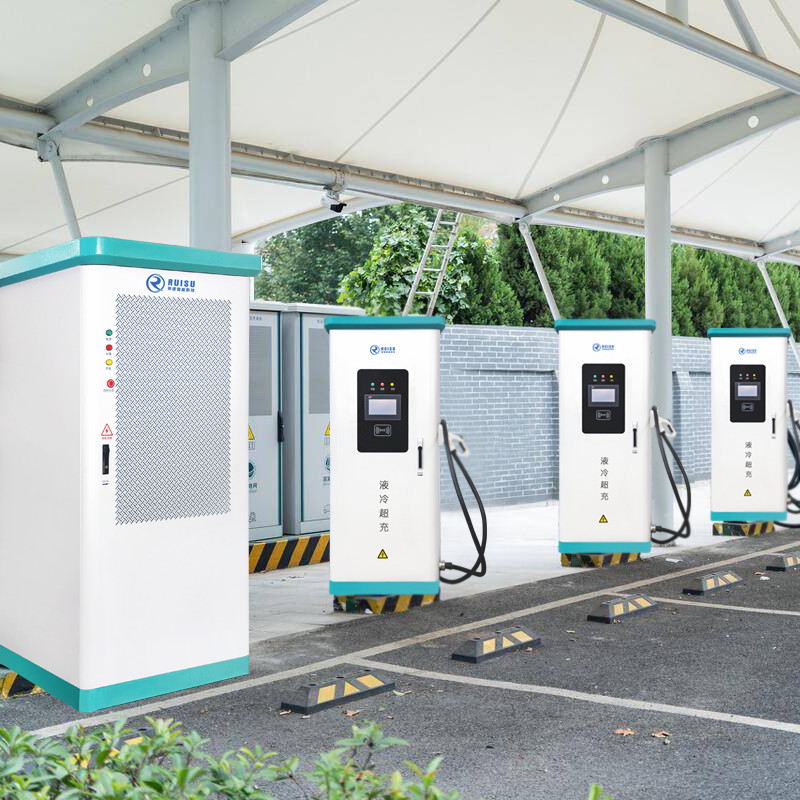

4. Adopt split structure (one-for-more); one main cabinet can be connected to multiple charging terminals (sub-cabinet) to meet different operational needs.
Technical Parameters:
| Product Model | RSDC1000-480KW-FYL main cabinet RSDC1000-600KW-FYL main cabinet RSDC1000-720KW-FYL main cabinet |
| Dimensions | 1193*1100*2197mm (main cabinet) |
| (width x thickness x height) | 800*530*1822mm (sub-cabinet) |
| AC Input Voltage Range | 380V+15% |
| AC Input Frequency | 45~66Hz |
| Output voltage | 200-1000VDC (300-1000VDC constant power) |
| Maximum Output Current | 0-600A; efficiency: > 96% |
| Metering Method | DC amperemeter metering |
| Altitude Height | <2000m |
| Operating Temperature | -20°C~50°C |
| Communication Interface | 4G, RS485, CAN, Ethernet |
| Charger Length | 600A liquid cooling gun, with the length of 5m |
| Degree of Protection | Ip54 for plug and dust cap; IP55 for plug and socket box |
| Cooling Mode | Forced air cooling + liquid cooling; cooling fan power: 90W |
| Dimensions of Cooling Source Module | 550*200*600mm |
Factory Show
R&D and production
Production and Quality
Produce Department
Projects Case
Using Applications
