Product Details:
|
| Input Frequency (Hz): | 45/66 Hz | Output Voltage Range (V): | 200-750VDC |
|---|---|---|---|
| Max. OAutput Current (a): | 50A | Cable Length: Charger Gun: | 5-7m(CCS2), Customized Acceptable |
| High Light: | RFID EV Home Wall Charger,40kw EV Home Wall Charger,OCPP EV Outdoor Charging Station |
||

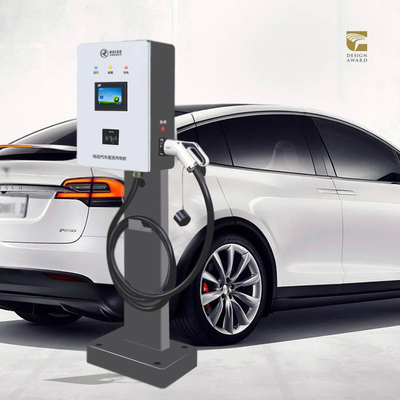

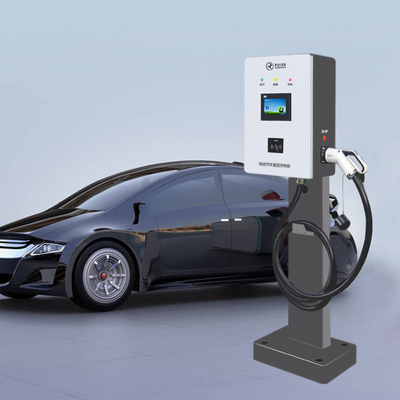

DC 40kw ev home wall charger fast charging station with OCPP, RFID and CCS1/2 connectors
Advantage:
1. Ultra-wide charging range: 200-1000V, BMS power supply: 12/24V;
2. Support charging card, APR WeChat, Alipay and other payment methods;
3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;
4.4.3" color touch screen, with friendly visual interface to present various information;
5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current leakage, emergency stop, etc.
6. Charging options: settings for charging time, SOC level, fee, appointment, etc.
7. Sheet metal shell, with a protection level of outdoor IP54.
Technical Parameters:
| Product Type | 40KW DC Charger |
| Product Model | RSDC1000-40KW |
| Dimension (H*W*D)(mm) | 473*280*1711 |
| Display Mode | LED Display |
| Input Voltage | 380VAC, 3phase+N+PE |
| Output Power (KW) | 40 |
| Input Frequency (HZ) | 45~55Hz |
| Output Voltage (V) | 200-1000VAC |
| Max. Output Current (A) | 100 |
| Length of Charging Gun (m) | 5 |
| Electric Leakage Protection (mA) | 30 |
| Human-machine Display | 4.3" Color Screen |
| Charging Operation | Swiping card / scanning code |
| Measuring and Accounting | Time-sharing accounting |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Natural cooling |
| Protection Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Optional | Install the bracket when landing; hanger |
| Product Introduction | 1.40KW intelligent AC charger is capable of running status monitoring, fault monitoring, charging measuring and accounting, remote control during charging and other functions; 2.Humanized operation: the charging, accounting and other operations can be realized on phone APP; 3.Reliable material: sheet metal shell is adopted to make it can be used outdoor and resist against complex climate And environment, with the waterproof and dust-proof grade up to IP54; 4.Safe and stable: it's capable of lightning protection, over-load, short-circuit, electric leakage protection; |
