Product Details:
|
| Input Frequency (Hz): | 45/66 Hz | Output Voltage Range (V): | 200-1000VDC |
|---|---|---|---|
| Max. Output Current (a): | 250A | Cable Length: Charger Gun: | 5-7m(CCS2), Customized Acceptable |
| High Light: | Fast 180kw EV Charger,180kw EV Charger DC,Highway Fast EV Charger |
||

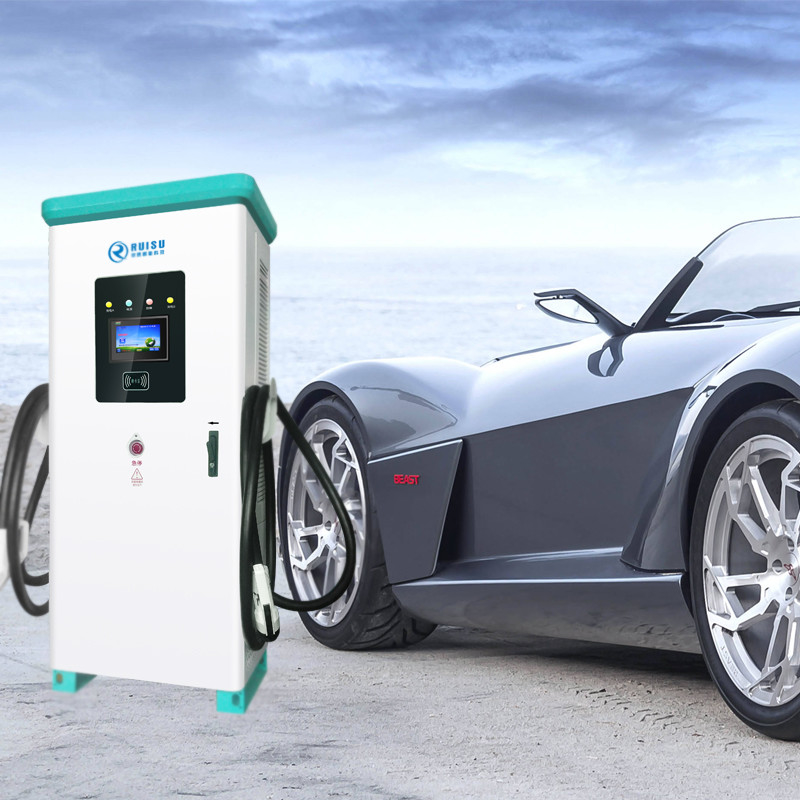

180KW Fast DC EV Charger Pile for Electric Vehicle Highway Charging Station
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically
match the charging power required by the electric vehicles connected to any terminal.
2. Reduce energy consumption, improve the efficiency of the charging module, with more reasonable power
distribution, more stable power switching, and finer granularity.
3. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics,
and high intelligence.
4. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle
to ensure charging safety.
5. Have dual charging ports to improve the efficiency of charging operation, and allow large battery vehicles to be charged
with two chargers.
6. Charging operation: swipe card / scan code; payment method: RFID card / WeChat/ Alipay.
Technical Parameters:
| Product name | 180KW All-in-one DC Charger |
| Dimension (H*W*D)(mm) |
830*620*1867
|
| Display Mode |
7" Color Touch Screen
|
| Input Frequency (HZ) |
45~66Hz
|
| Protection Grade / Shell Material |
Outdoor IP54 / sheet metal shell
|
| AC Input Voltage Range (V) |
380±15%, 3 phases+N+PE
|
| Power Factor |
≥0.99
|
| Communication Interface |
4G
|
| Heat Dissipation Control |
Natural cooling
|
| Charging Operation |
Swiping card / scanning code
|
| Protection Function |
Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
|
| MOQ | Small order can be acceptable. |
| Delivery Time | According to order qty. |
| Packaging | Wooden box |
| Communication Protocol | ocpp1.6 |
| Charging Selection |
Automatic, timing, quantitation, fixed fee, appointment etc
|
| Running Indication |
Power supply, charging, fault
|
