Product Details:
|
| AC Input Connection: | L1+L2+L3+PE (America) | Max. Input Power: | 50A @ 380V |
|---|---|---|---|
| Frequency: | 50 /60 Hz | Max. Output Power: | 30KW |
| High Light: | Outdoor Electric Car Charging Stations 30kw,Ip54 Outdoor Electric Car Charging Stations |
||

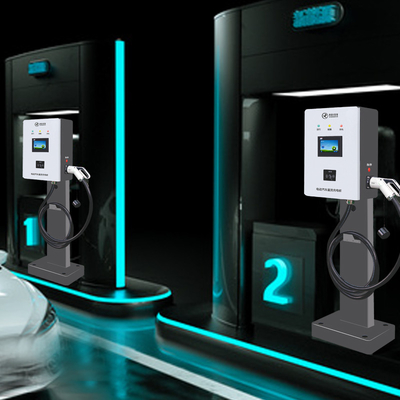

30kw Electric Car Charging Station Dc Fast Ev Charger Ev Charging Piles
Advantage:
1. Ultra-wide charging range: 200-1000V, BMS power supply: 12/24V;
2. Support charging card, APR WeChat, Alipay and other payment methods;
3. Adopt efficient modules, with high power factor and an efficiency of more than 96%;
4.4.3" color touch screen, with friendly visual interface to present various information;
5. Multiple protection functions: protection against lightning, overload, short circuit, over temperature, current
leakage, emergency stop, etc.
6. Charging options: settings for charging time, SOC level, fee, appointment, etc.
7. Sheet metal shell, with a protection level of outdoor IP54
Technical Parameters:
| Product Type | 30KW American Standard DC Charger |
| Product Model | RSDC1000-30KW |
| Dimension (H*W*D)(mm) | 473*280*1711 |
| Display Mode | 4.3" Color Touch Screen / 7" Color Touch Screen |
| AC Input Voltage Range (V) | 380±15%, 3 phases +N+PE |
| Frequency Range (Hz) | 50/60Hz |
| Power Factor | ≥0.99 |
| Efficiency | ≥95% |
| Output Voltage Range (V) | 500-500Vdc |
| Output Voltage Range under Constant Power (V) | 500-500Vdc |
| Output Power (Kw) | 30 |
| Max. Output Current (A) | 80A@375V 30A@1000V |
| Charging Interface (Nos.) | 1 |
| Length of Charging Gun (m) | 5 |
| Noise (dB) | <65 |
| Altitude (m) | ≤2000 |
| Working Temperature (ºC) | - 20~50ºC |
| Storage Temperature (ºC) | - 40~70 |
| Average Relative Humidity | 5%~95% |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
| Charging Selection | Self-provided, timing, quantitation, fixed fee, appointment etc. |
| Payment Method | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Product Introduction | 1. Friendly visual interface, multiple information displays, prompt information, IC card information etc.; 2. Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; 3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 4. In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light; 5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54; 6. The whole industrial chain of production mode for charging pile can sure the reliability of hardware. |
Factory Show
R&D and production
Production and Quality
Projects Case
