Product Details:
|
| Input Frequency (Hz): | 45/66 Hz | Output Voltage Range (V):: | 300-1000VDC |
|---|---|---|---|
| Max. Output Current: | 250A (Single Gun) | Cable Length:: | 5-7m(CCS2), Customized Acceptable |
| High Light: | Multi Terminal Fast EV Charger,Fast EV Charger Commercial,480KW Commercial Ev Charging Points |
||

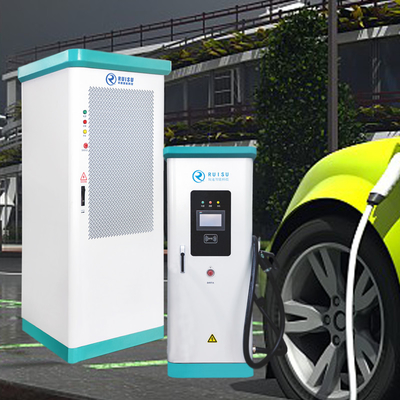

Split Charging Pile 480KW Hot Sale Multi-Terminal Split EV Fast Charger For Car Charging Station
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by the electric vehicles connected to any terminal; satisfy the needs of high-power and fast charging of electric vehicles in the future, avoiding repeated investment caused by equipment upgrading or charging station reconstruction.
2. Matrix flexible charging stack: based on matrix control of power unit, a split charging station is built with a fully digital intelligent charging module as the core component to achieve rapid deployment; the matrix flexible charging stack is centralized and preassembled, saving a lot of time on site installation and commissioning and shortening the construction period.
3. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low harmonics, and high intelligence, especially applicable to high-power charging of electric buses.
4. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle, thus increasing the utilization of the charging equipment and , achieving highly integrated management.
5. High expandability, low energy consumption and high efficiency.
6. Multiple sub-cabinets (single charger / double charger combination) are available to meet different operation needs.
7. Standard 4G module; charging operation: swipe card / scan code; payment method: RFID card / WeChat/Alipay;
8. Compatible with mainstream charging management platforms.
Technical Parameters:
| Product Type | 480KW Split DC Charger |
| Product Model | RSDC1000-480KW |
| Dimension (H*W*D)(mm) | 1063*1056.4*2183 mm (360KW, main cabinet) 1670*692*392 mm (Split cabinet) |
| Display Mode | 7" Color Touch Screen |
| AC Input Voltage Range (V) | 260-470VAC, 3P+N+PE (Wye connection) |
| AC Input Frequency (Hz) | 45 /66 Hz |
| Power Factor | ≥0.99 |
| Current Harmonics (THDI) | ≤5% |
| Efficiency | ≥96% (full load) |
| DC Output Voltage Range (V) | 200-1000Vdc((CCS2) |
| Output Voltage Range under Constant Power (V) | 200-1000Vdc |
| DC Output Current (A) | 250A (single gun) |
| Output Power (KW) | 480KW |
| Length of Charging Gun (m) | 5-7m |
| Noise (dB) | <=65 |
| Charging Operation | Swiping card/scanning code |
| Running Indication | Power supply, charging, fault |
| Heat Dissipation Control | Air Cooling |
| BMS Auxiliary Power Supply (V) | 12/24 |
| Power Distribution | Equipartition/Intelligent Distribution/Switching |
| Altitude (m) | ≤2000 |
| Working Temperature (ºC) | -20~50 |
| Storage Temperature (ºC) | -40~70 |
| Average Relative Humidity | 5%~95% |
| Protective Function | Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc. |
| Charging Selection | RFID card, WeChat Official Account, Alipay |
| Communication Interface | CAN with standard configuration, Ethernet, RS485, RS232, GPRS |
| Protection Grade / Shell Material | Outdoor IP54 / sheet metal shell |
| Product Introduction | 1.Friendly visual interface, multiple information displays, prompt information, IC card information etc.; 2.Electric-energy acquisition system and charge accounting system provides the records of earning and spending. IC card and WeChat can be used for payment; When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 3. When the electric vehicle is charging, the machine will automatically stop if the battery is full and remind the user through indicator light; 4.In case of over-voltage, under-voltage, short-circuit, electric leakage and connection fault, the machine will stop charging and alarm through indicator light; 5. Industrial design, superior temperature adaptability, it has the long service life with protection grader of IP54; 6.The whole industrial chain of production mode for charging pile can sure the reliability of hardware. |
