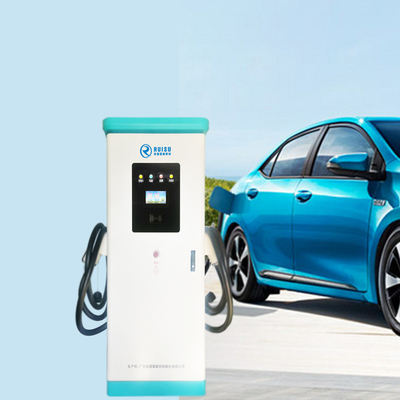

Adjustable 120kw EV Charger , DC Charging Points Remote APP Control

High Quality 120KW Power Adjustable DC EV Charger Fast Charging Station OCPP Cloud Management Remote APP Control

Advantages:

1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically

    match the charging power required by the electric vehicles connected to any terminal.
2. Reduce energy consumption, improve the efficiency of the charging module, with more reasonable power

   distribution, more stable power switching, and finer granularity.
3. Equip intelligent charging module, which has the advantages of high power, outstanding efficiency, low

   harmonics, and high intelligence.
4. Dynamically allocate the charging power according to the charging demand from the BMS of the charging

   vehicle to ensure charging safety.
5. Have dual charging ports to improve the efficiency of charging operation, and allow large battery vehicles

   to be charged with two chargers.
6. Charging operation: swipe card / scan code; payment method: RFID card / WeChat/ Alipay.

Technical Parameters:

Product name	120KW All-in-one DC Charger
Dimension (H*W*D)(mm)	1870*800*542
Display Mode	7" Color Touch Screen
Input Frequency (HZ)	45~66Hz
Protection Grade / Shell Material	Outdoor IP54 / sheet metal shell
AC Input Voltage Range (V)	380±15%, 3 phases +N+PE
Power Factor	≥0.99
Communication Interface	4G
Heat Dissipation Control	Natural cooling
Charging Operation	Swiping card / scanning code
Protection Function	Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
MOQ	Small order can be acceptable.
Delivery Time	According to order qty.
Packaging	Wooden box
Communication Protocol	ocpp1.6
Charging Selection	Automatic, timing, quantitation, fixed fee, appointment etc
Running Indication	Power supply, charging, fault



After-sale Service:

1. Two years warranty for the whole body.

2. If any parts break during the period, it's free replacement.

3. Professional technical engineer support for installation&operation and communication connection assistance between your app and our OCPP platform.



Additional Options:

1. Customized cable length.

2. Customized charger connector.

3. Customized Box color and customized logo.
