Product Details:
|
| Dimensions (width Xthickness X Height): | 830*920*1867 | Input Frequency (Hz): | 45/66 Hz |
|---|---|---|---|
| Output Voltage Range (V): | 200-1000VDC | Max. Output Current (a): | 250A |
| Cable Length: Charger Gun: | 5-7m(CCS2), Customized Acceptable | ||
| High Light: | Ocpp DC EV Charging Stations,CCS2 DC EV Charging Stations,300kw ev charger ocpp |
||

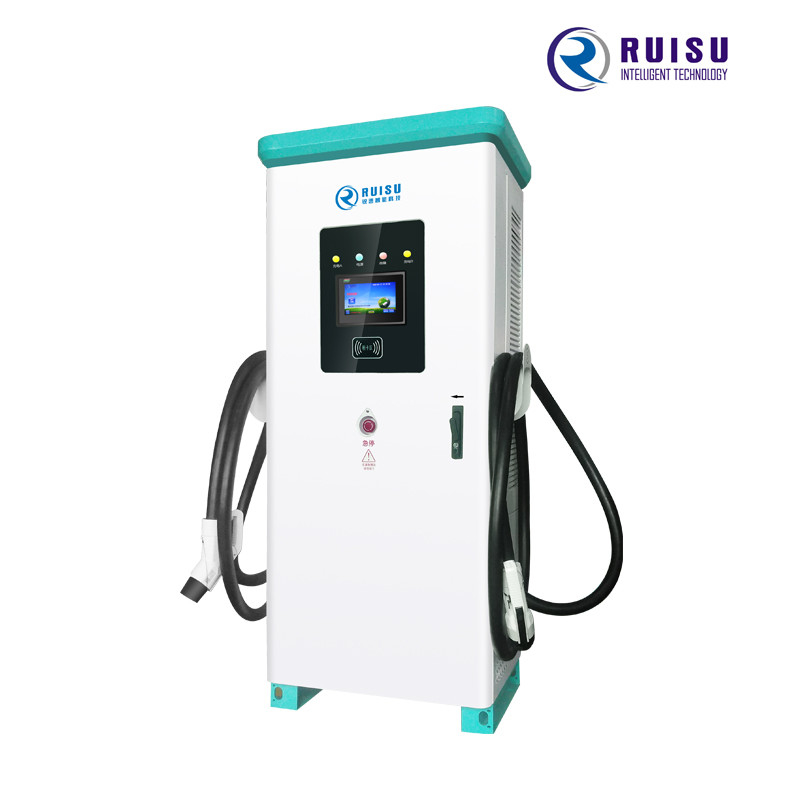

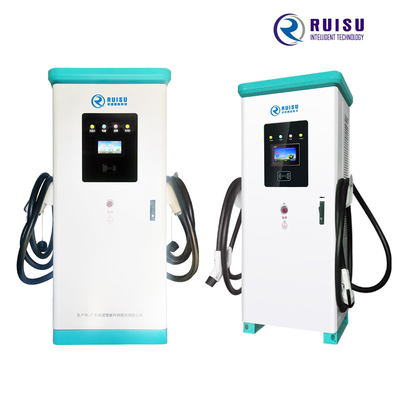

300kw DC Fast Charger Ocpp EV Charging Station with CCS2/GBT Charging Plugs
Advantages:
1. Meet the charging requirements of all models of electric vehicles with different powers and dynamically match the charging power required by lhe electric vehicles connected to any terminal.
2. Reduce energy consumption, improve the efficiency of the charging module, with more reasonable power distribution, more stable power switching, and finer granularity.
3. Equip intelligent charging module with ultra-wide range of constant power, applicable to high-power charging of electric vehicles.
4. Dynamically allocate the charging power according to the charging demand from the BMS of the charging vehicle to ensure charging safely.
5. Have dual charging ports to improve the efficiency of charging operation, and achieve charging with two chargers at the same time.
6. Charging operation: swipe card / scan code: payment method: RFID card / WeChat/AIipay.
Technical Parameters:
| Product name | 300KW All-in-one DC Charger |
| Dimension (H*W*D)(mm) |
830*824*1966
|
| Display Mode |
7" Color Touch Screen
|
| Input Frequency (HZ) |
45~66Hz
|
| Protection Grade / Shell Material |
Outdoor IP54 / sheet metal shell
|
| AC Input Voltage Range (V) |
380±15%, 3 phases+N+PE
|
| Power Factor |
≥0.99
|
| Communication Interface |
4G
|
| Heat Dissipation Control |
Natural cooling
|
| Charging Operation |
Swiping card / scanning code
|
| Protection Function |
Lightning protection, over-load, short-circuit over-temperature, electric leakage, emergency stop protection etc.
|
| MOQ | Small order can be acceptable. |
| Delivery Time | According to order qty. |
| Packaging | Wooden box |
| Communication Protocol | ocpp1.6 |
| Charging Selection |
Automatic, timing, quantitation, fixed fee, appointment etc
|
| Running Indication |
Power supply, charging, fault
|
